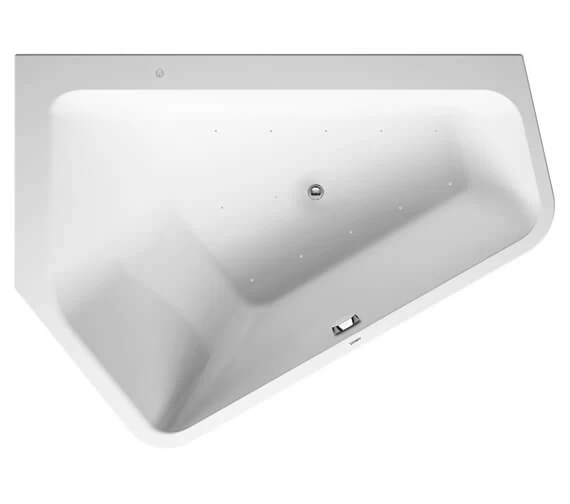

If you seek a modern bath with striking looks, a large soak area and value for the cost, look no further than the Duravit Paiova range of unique models. Featured here is a five corner bath that is breathtaking in its visual appeal. A classic white colour gives it a contemporary look that will match any similar or contrasting decor. Keeping in mind comfort and luxury, it has 2 different backrest slopes and a whirlpool system. This bath is available in the right or left choice and a Jet, Combi E or Combi L system. The tub is made from quality 5mm acrylic and comes with a five-year warranty against manufacturing defects.
- ✔Designed by EOOS
- ✔Features 2 different backrest slopes
- ✔Supplied with seamless acrylic panel
- ✔Five years warranty against any manufacturing defects
- It comes in a white alpin finish.
- 5 Corner Bath.

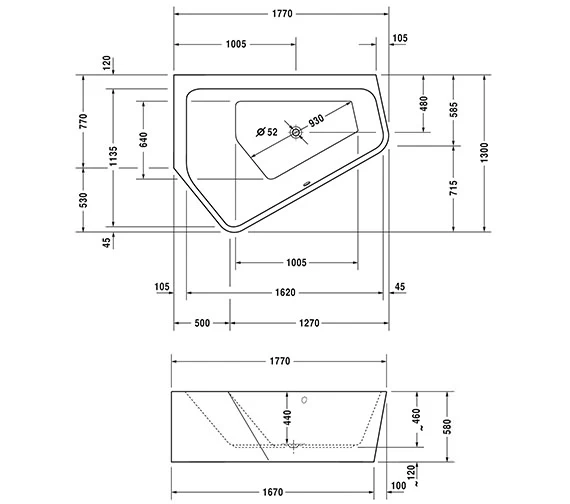

- Refer to the technical image for detailed technical dimensions.
- Download the Installation Instruction PDF File from the Additional Info Section.
- Details Of 1770 x 1300mm Bath :.
- Dimension: 1770 x 1300 x 440mm [Length x Width x Depth].
- Height with the panel: 580mm.
- The capacity of the bath: is 205 Litres.
- Details Of 1900 x 1400mm Bath :.
- Dimensions: 1900 x 1400 x 440mm [Length x Width x Depth].
- Height with Panel: 580mm.
- Water capacity: 267 litres.
- Features Of Air System :.
- 12 flat white floor jets air.
- Piezo switched floor jets.
- Includes waste and overflow.
- Supplied with support frame.

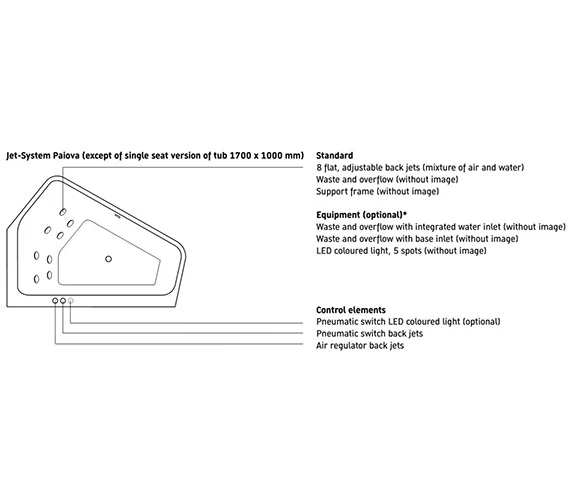

- Features Of Jet System :.
- Eight flat adjustable back jets for the mixture of air and water.
- Pneumatic switch back jets.
- Air regulator back jets.
- Includes waste and overflow.
- Supplied with support frame.
- Full system drainage.
- A system with protection against dry run.

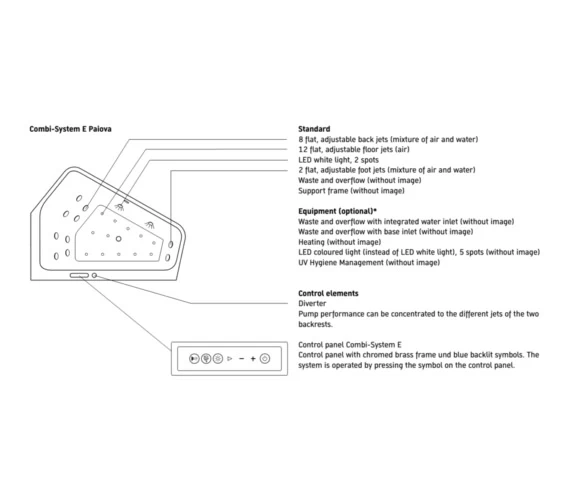

- Features Of Combi System E :.
- 8 Flat Adjustable Back jets for the mixture of air and water.
- 12 Flat adjustable Floor Jets for air.
- LED White light – 2 Spot.
- 2 Flat adjustable foot Jets for the mixture of air and water.
- Includes waste and overflow.
- Supplied with support frame.
- Diverter.
- Pump performance can be concentrated on the different jets of the two backrests.
- Full system drainage.
- A system with protection against dry run.
- Control panel with chromed brass frame and blue backlit symbols.
- The Combi system E is operated by pressing the symbol on the control panel.

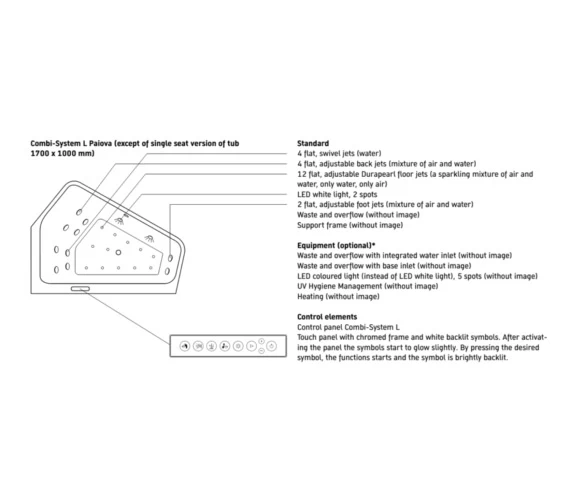

- Features Of Combi System L :.
- 4 Flat Swivel jets for water.
- 4 Flat Adjustable Back jets for the mixture of air and water.
- 12 Flat adjustable Durapearl Floor Jet for air – a sparkling mixture of air and water, only water, only air.
- LED White light – 2 Spot.
- 2 Flat adjustable foot Jets for the mixture of air and water.
- Includes waste and overflow.
- Supplied with support frame.
- Full system drainage.
- A system with protection against dry run.
- Control Panel with white backlit symbol.
- The Combi system L is operated by pressing the desired symbol on the Chromed frame touch panel.
- Optional Accessories :.
- White Headrest.
- Bathtub anchor.
- Rubber profile.
- Surcharge for Quadroval waste and overflow with a water inlet.
- Surcharge for Quadroval waste and overflow with base inlet.
Note: Quadroval, Waste and overflow with water inlet, pipe interrupt or faucet with safety against backflow according to DIN EN 1717 necessary, connection hose # 790166 is included in the delivery. Quadroval, Waste and overflow with base inlet, pipe interrupt is mandatory, connection hose # 790166 is recommended.
