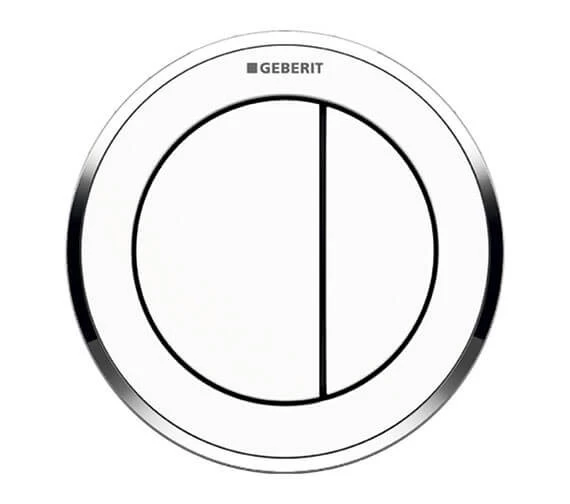

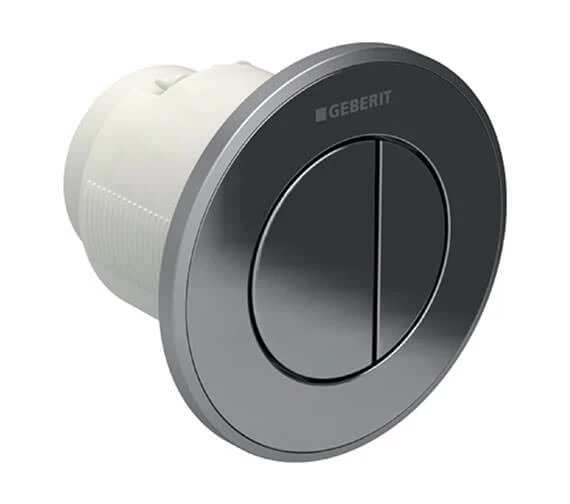

Geberit Type10 Pneumatic Dual Flush Concealed Actuator

The Geberit Type10 Pneumatic Dual Flush Concealed Actuator is suitable for use with a concealed cistern and comes in 8cm, 12cm, and 15cm size options. Requiring an actuation force of 25N for proper functionality, this product is designed to be combined with a compatible Geberit flush plate for single flush and/or stop-and-go flush systems, or with Geberit cover plate in other installation situations. Available in 5 different finish options to choose from, this model also includes the fixing materials required for secure installation along with it upon purchase.

• WC button type: Single and Dual [Refer Option].
• Suitable to use with concealed cisterns 8cm, 12cm and 15cm [Refer Option].
• Size: Ø 94mm.
• 74 mm hole required.
• Round design.
• Can be combined with Geberit flush plates for single or dual flush and stop-and-go flush or Geberit cover plate.
• Actuation force: < 25 N.

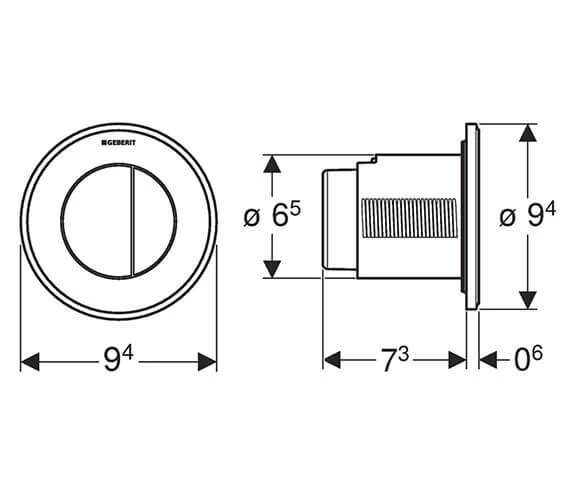

• Refer technical drawing for more specification.
• Please download the Installation Instructions PDF from the Additional Info Section.
• Application purposes For 8cm Cistern.
• For pneumatic remote flush actuation of Geberit concealed cisterns.
• For single or dual flush.
• For solid and drywall construction.
• For concealed installation.
• For Geberit Sigma concealed cisterns 8 cm.

• Application purposes For 12cm and 15cm Cistern.
• For pneumatic remote flush actuation of Geberit exposed and concealed cisterns.
• For single or dual flush.
• For solid and drywall construction.
• For concealed installation.
• For Geberit Delta, concealed cisterns 12 cm.
• For Geberit Sigma, concealed cisterns 12 cm.
• For Geberit Omega concealed cisterns 12 cm.
• For Geberit Kappa, concealed cisterns 15 cm.
• Scope of delivery.
• Actuator.
• Pneumatic flushing device.
• Pneumatic hose length: 2 m.
• Conduit pipe length: 1.7 m.
• Fastening material.
