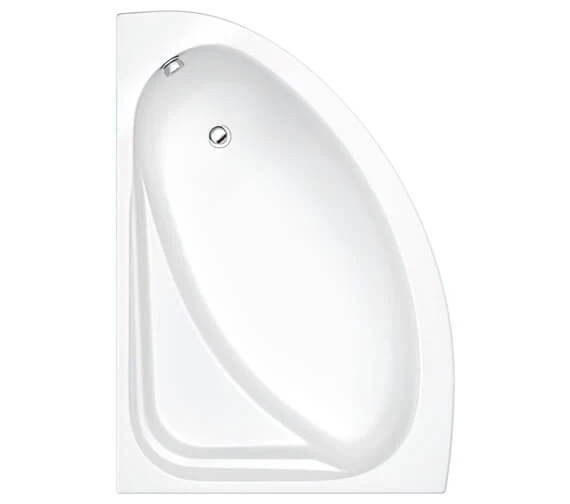

Trojan Orlando Offset Corner Bath is one of the best sellers. Ideal for Compact Bathrooms, the Orlando is spacious and features a sleek shape and modern design. Suitable for both left or right-hand installation, the delicately rounded triangular profile makes it a beautiful addition to your bathroom and a practical one. The dazzling white finish gives a clean, modern and pristine appeal. Manufactured with 5mm Thick Acrylic, it is supplied fully encapsulated as standard and can team well with different types of available at our online store. This offset corner bath can be used with Bath waste and overflow, available separately.
- ✔Manufacture using a 5mm Lucite acrylic sheet
- ✔Pair of tubular cradles supplied to provide support to the bath
- ✔Timber blocks to offer rim support and fixing points for installation kits
- ✔Twenty-five-year guarantee from Trojan against manufacturing defects
- ✔Encapsulated baseboard routed and shaped to cover the entire base of the bath, including around the plug hole
- Available in different variations: Left Hand and Right Hand – [Optional].
- Dimension: 1500mm x 1020mm x 420mm [Length x Width x Depth].
- It comes without tap hole.
- Bath capacity: 160 litres.
- Overall Height: 560mm.
- It comes in a white finish.
- Encapsulated baseboard routed and shaped to cover the full base of the bath, including around the plug hole.
- Material and product standards: EN263, EN198 , CE EN 14516:2015 CL.1 PH, FSC TT-COC-003576.
- Supplied with corner bath fittings as standard.
- Bath waste and overflow shown in the image are omitted.
- Download the Fitting Instruction PDF File from the Additional Info Section.

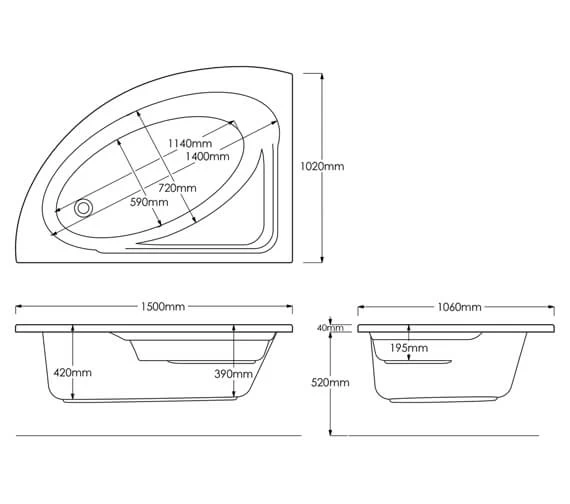

- Refer to the technical drawing for more technical specifications.
- Optional Accessory:.
- Bath Panel.
- Bath Waste.
Please Note: For this bath, installation is not possible with the EPS tiling board.
