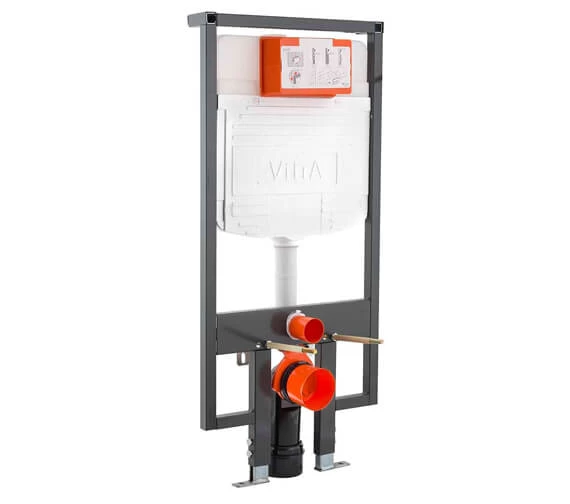

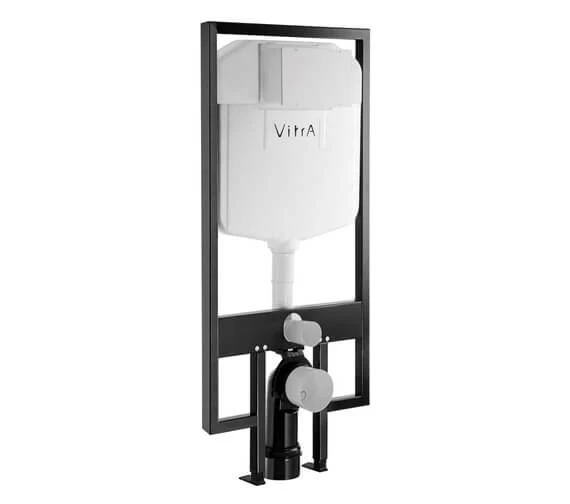

VitrA Floor And Wall Fixation Slim Frame

The Floor and Wall Fixation Slim Frame is designed for rapid, solid wall installation and features both water-saving and space-saving features. Manufactured from solid steel material and offered in a dark grey finish, this product is WRAS approved and can work with a minimum working pressure of 0.5 bar up to a maximum working pressure of 10 bar. Available for purchase in either a 3/6 litre or 2.5/4-litres flush volume options, not only is this product truly versatile for use but its also ideal for installation within any modern or traditional bathroom layout, anywhere.

• Available in 3/6 or 2.5/4 litres flush volume [Optional].
• 3/6 litres (adjustable to be used at 2.5/4 litres).
• 2.5/4 litres (adjustable to be used at 3/6 litres).
• Cistern Type: Dual flush.
• Installation type: Rapid, solid wall.
• Front Wall: Lightweight construction -Gypsumplate.

• Back Wall: Brick construction.
• Working pressure recommended: Minimum 0.5 bar and maximum 10 bar.
• Weight: 18 Kg.
• Size: 535 x 125 x 1125mm [Width x Depth x Height].
• Compatible flush plates [Optional].

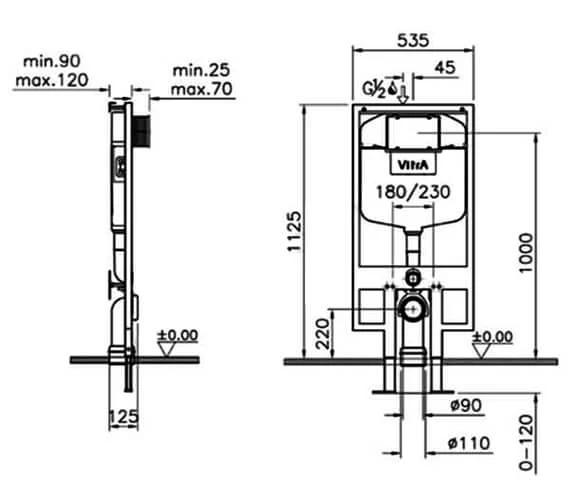

• For complete size details, please refer to the technical drawing.
